WiFi Development Board TASMOTA Compliant – AWR01

9,99 19,99

EAN: SKU: AWR01 Category: Tags: , , ,

Description

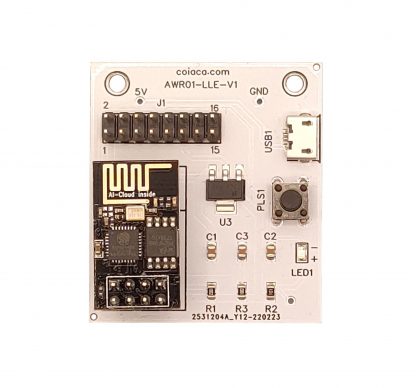

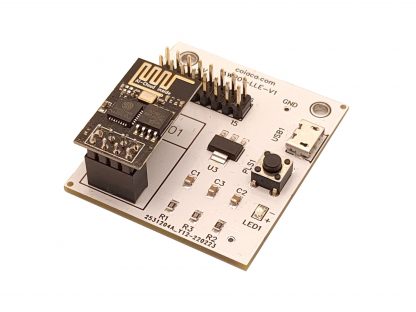

AWR01 is a circuit board for IoT devices development based on ESP8266-01.

Make it smart!
Easy wiring, no soldering.

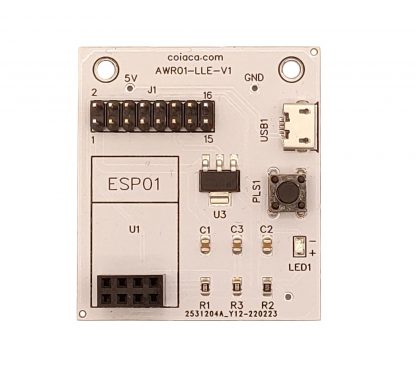

You can buy it with or without the ESP8266-01. And if you buy it with the ESP8266-01 included, you can choose between the original firmware or flashed with different Tasmota variants.

Applications of this board could be:

  • WiFi thermometers
  • WiFi thermostats
  • WiFi led controllers
  • WiFi IR receiver/transmitter
  • WiFi displays
  • WiFi switches
  • WiFi relays
  • WiFi buttons
  • WiFi repeaters
  • many others…

Main Specs:

  • ESP8266-01 socket
  • Power Supply: DC12/5V micro USB connector or PINs
  • Wireless standard: WiFi 802.11 b/g/n
  • Security Mechanism: WEP/WPA-PSK/WPA2-PSK
  • 1 indicator led (GPIO0) with PIN for connecting external led.
  • 1 push button (GPIO3) with PIN for connecting external push button
  • 2 digital PINS (GPIO1 and GPIO2) – Can be used with I2C



  • PinOut:
    AWR01 PIN Function ESP8266-01 PIN
    1 Vcc 5-12v
    2 Vcc 5-12v
    3 GND
    4 GND
    5 Jmp for internal led
    6 Jmp for internal led
    7 + Ext LED
    8 GND Ext LED – GPIO0 GPIO0 (PIN 5)
    9 GND Push Button
    10 Push Button – GPIO3 GPIO3 (PIN 7)
    11 Vcc 3.3v
    12 Vcc 3.3v
    13 TX – GPIO01 GPIO1 – TX (PIN 2)
    14 RX – GPIO02 GPIO2 (PIN 3)
    15 GND
    16 GND



Tasmota template: {“NAME”:”AWR01t”,”GPIO”:[576,1,1,128,0,0,0,0,0,0,0,0,0,0],”FLAG”:0,”BASE”:18}


Documentation

  • English – AWR01 Technical Specification (PDF)
  • Spanish – WTHUSBC Especificación técnica (PDF)
